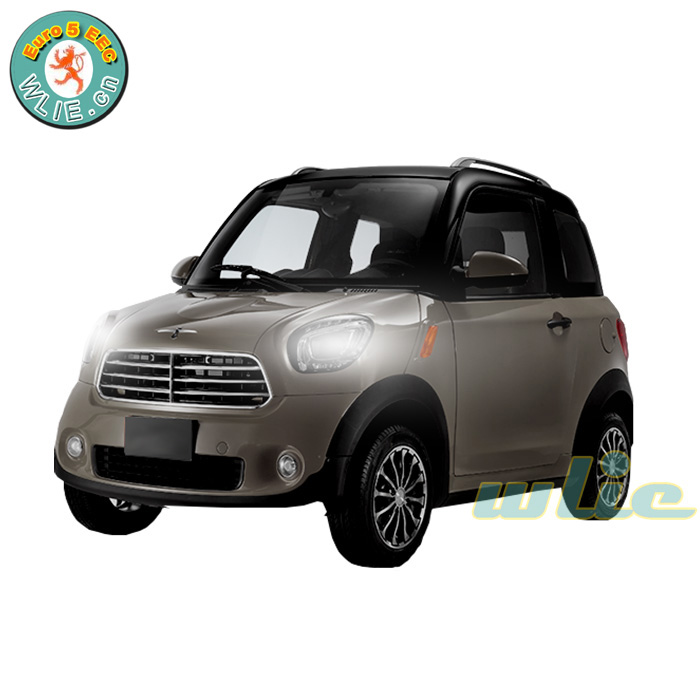

M1 (Euro 5) Inquiry
specification




Model72V DC (Lead Acid 120Ah)72V DC (Lithium 150Ah)
EEC CertificateL7e-CU
Charging Voltage220V / 110V
SpeedMAX.: 50KM/H
L×W×H(mm)2830x1500x15652830x1500x1565
Wheel base(mm)18151815
Wheel track(mm)1285/13301285/1330
Min. ground clearance(mm)165165
Min.turning radius(m)4.44.4
Unladen mass(kg)835650
Passenger22
Wheel size155/65 R13155/65 R13
System voltage7272
Battery capacity(Ah)120150
Battery6-EVF-120ALi(NiCoMn)O2 / LiFePO4
Motor typeAC Asynchronous / PMSMPMSM
Rated power(Kw)4/4.54.5
Intelligent protection of controller
Failure indication of driving system
Power output modeEconomic/sporty
Speed ratio of reducer10:0110:01
Maximum speed5050
Max.endurance mileage(km)150150
Operating mileage110130
Mileage using air-conditionerreduce by 25~30%
GradeabilityDC:>20%>20%
Prevent slipping
Power consumption (kw.h/100km)8—108—10
Charging time(h)8—106—8

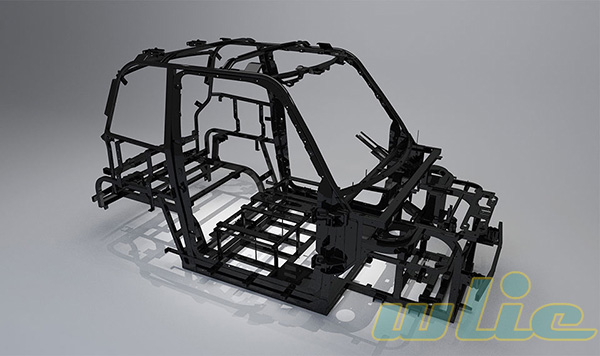

Frame typeLoad bearing frame structure
Foldable rear-view mirror
Aluminum wheel
LED digital instrument

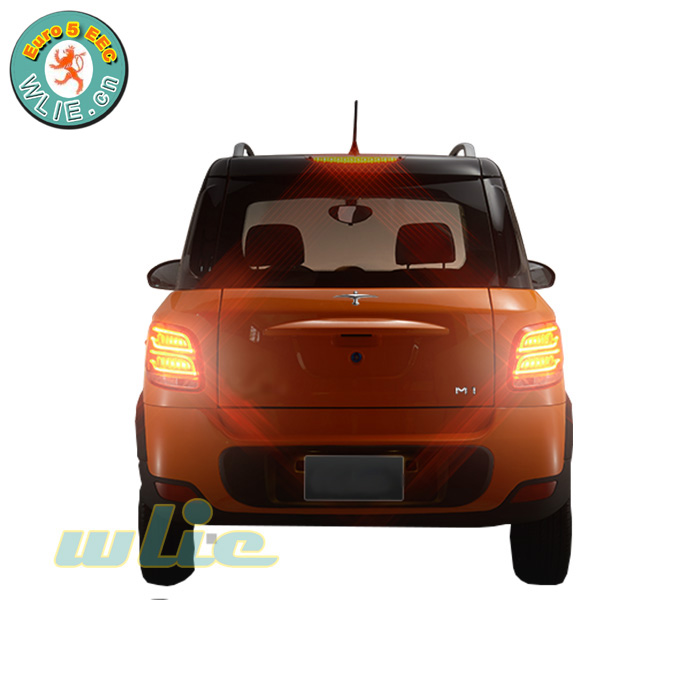

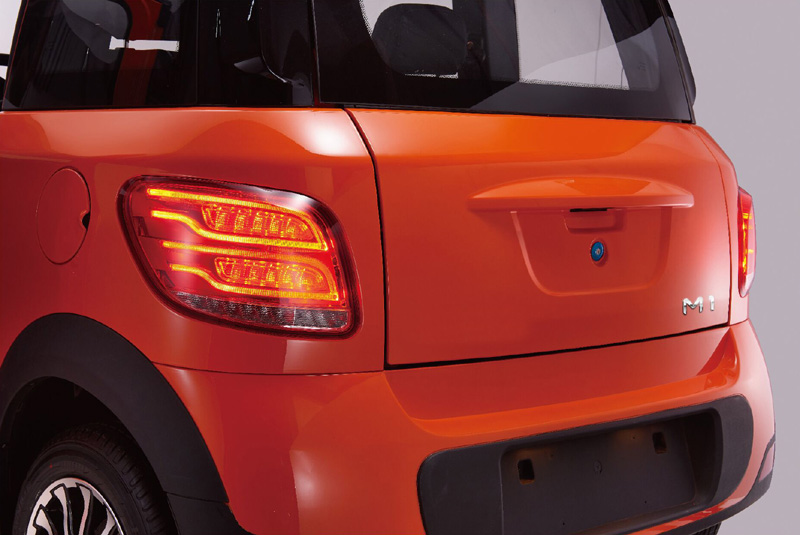

LED tail-lamp
LED headlamp
High mounted stop lamp
Front suspensionMacpherson suspension
Rear suspensionTailing arm suspension
Braking systemDisc brake
Brake booster
Braking distance(m)3.5(30km/h)     constant speed
EPS
Rotations of steering wheel33
Full-automatic air conditioner
Heater--
Adjustable seat

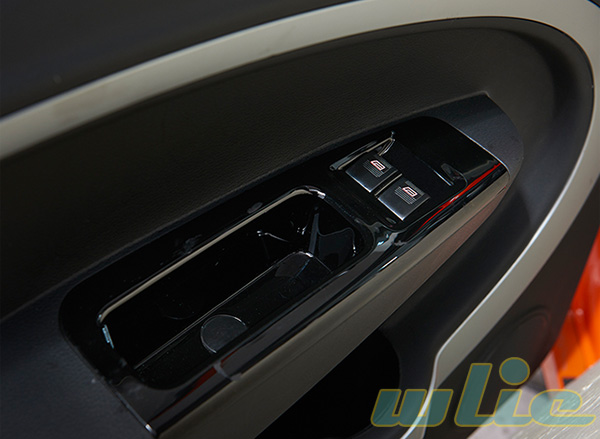

Electric doors and windows
Anti-glare inside rear-view mirror
Reading lamp
Digital instrument
12V power interface11
Central control system
3-point safety belt
Copilot handle
Rear view camera
Intelligent charging system
Intelligent car navigation
Bluetooth telephone
Radio
Quantity of loudspeaker22



Selling Points of the product

1. with fully enclosed chassis,the car is dust proof and water proof

(you can buy a mirror to help the endusers see the bottom of the car like what we have in a shoe shop)

2. 72V 120Ah Lead acid battery with famous brand and good quality in China,

while some other brands use 100Ah,each battery 20Ah less,6pcs in one car,

it means the cost of each car is 1 battery less than us.

3. we are equipped with air conditioner, eps and rear view camera.

4. solid wheel hub,provide better loading capacity

5. small details of production, inner decoration and other things, like the hexagon bolt on the back door,

other brands may use only screw

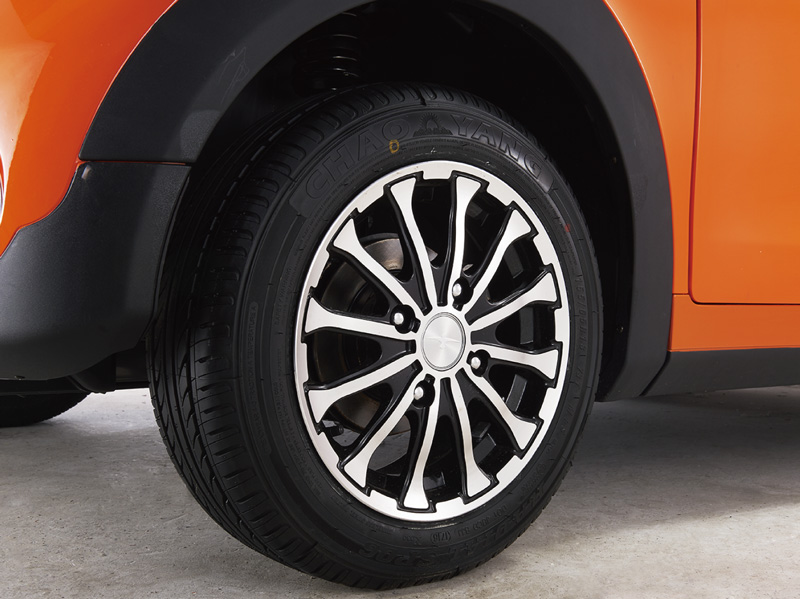

6. 13inches Chinese famous brand tubeless tyre, not inferior product

7. high quality lenticular LED headlights, more bright, more effective and give end user safety driving experience at nights,

the cost for some other factory is only 40-50% of our cost.

8. no foggy front windshield, due to the good sealing of the car and double glazing glass.

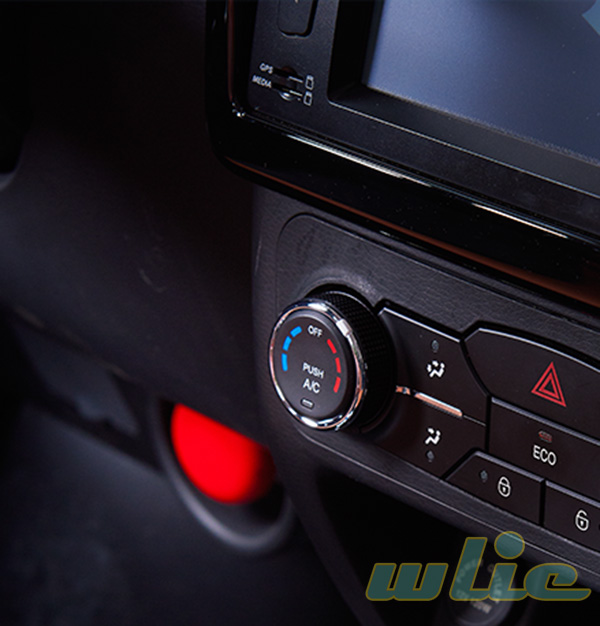

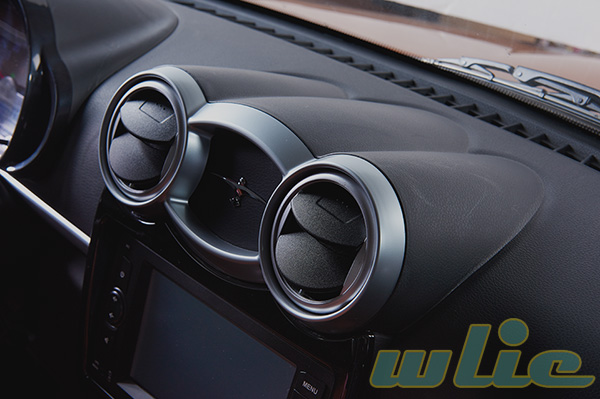

9. automobile level air conditioning system has automatic circulating air system to help fresh air in and out, cold and warm function,

the temperature can be cool down within 4 minutes from 38℃ to 25℃,and the air outlet can be cooled down at 16℃.

10. the material of exterior parts is ABS and PP, like the car roof which is automobile level,

the temperature resistance is from -30℃ to 140℃,only 1.6% deformation when subjected to 30MP pressure in 300h.

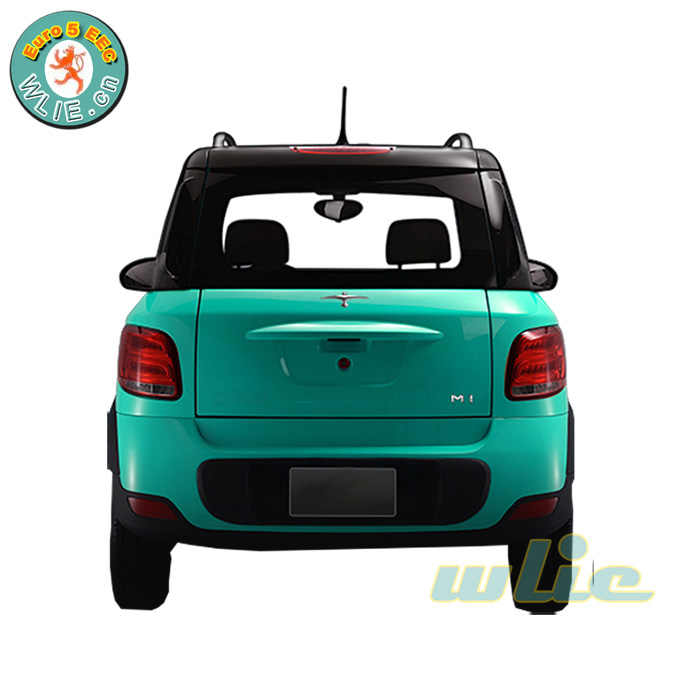

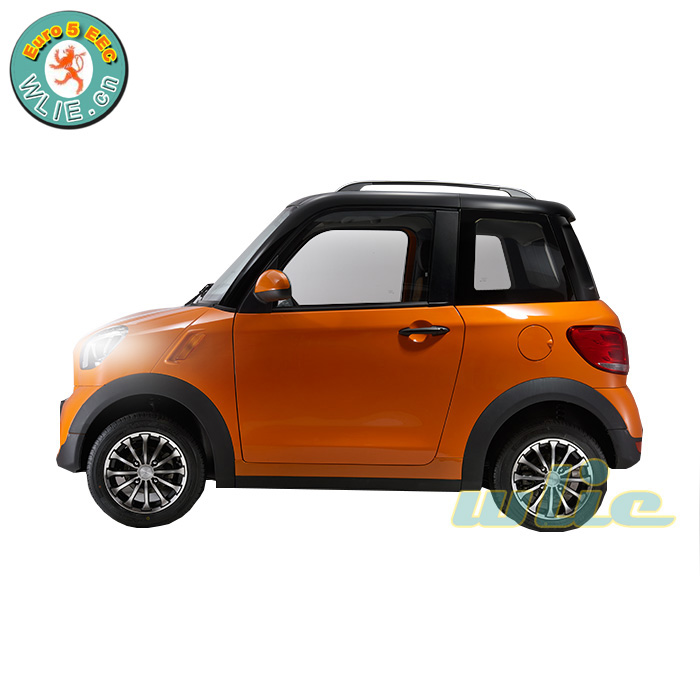

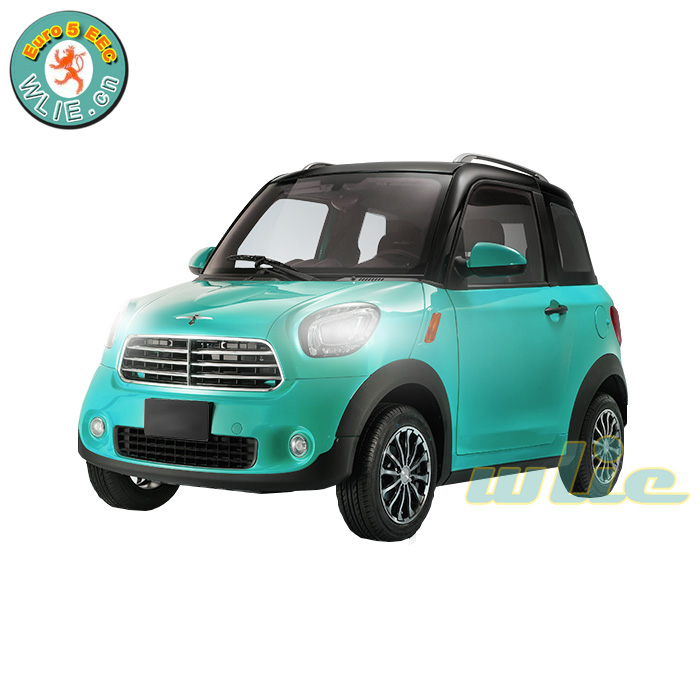

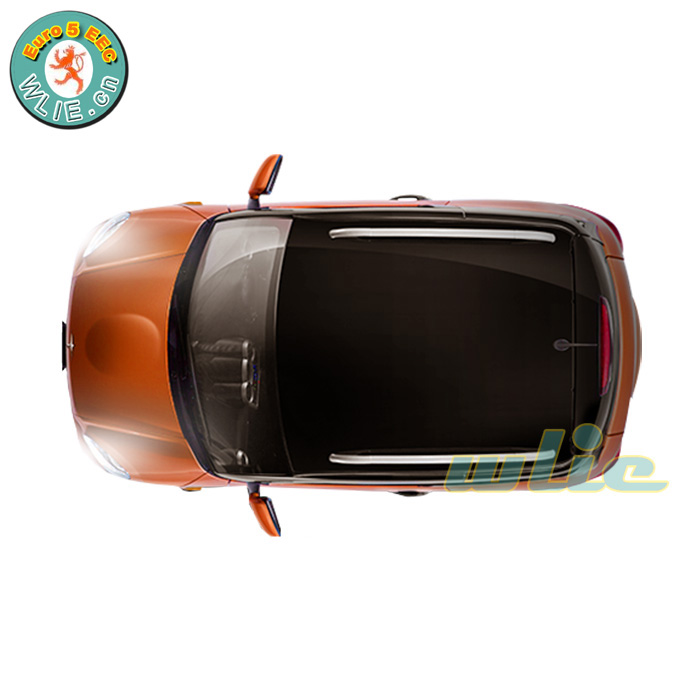

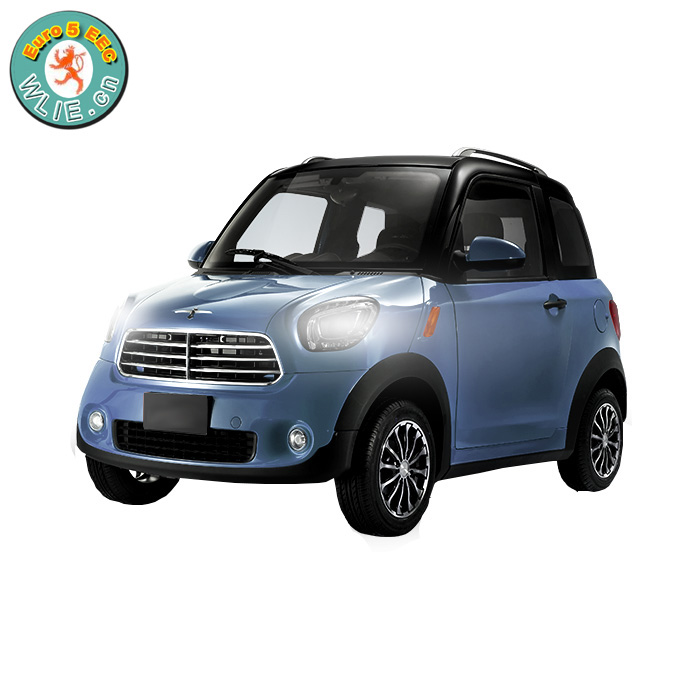

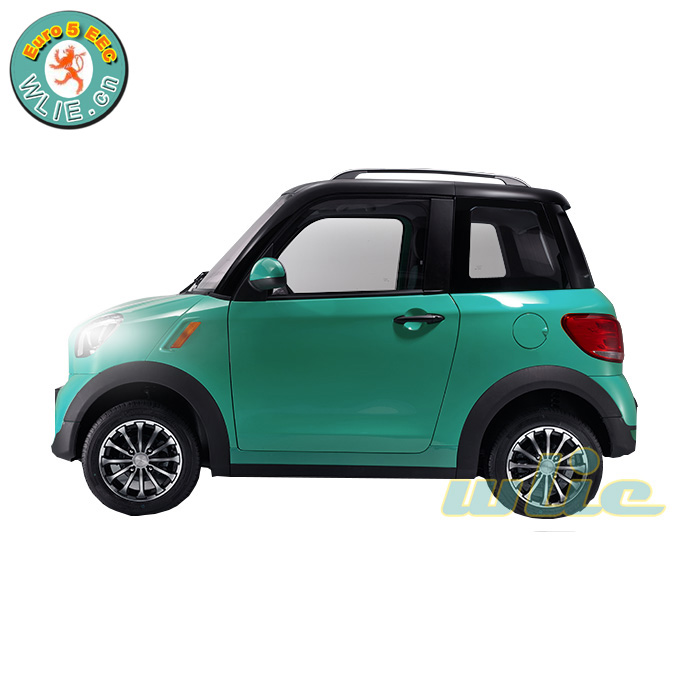

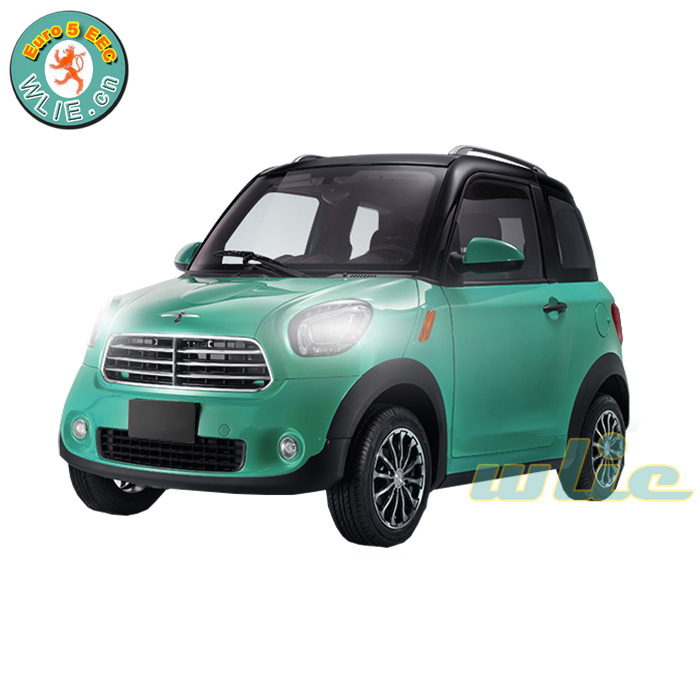

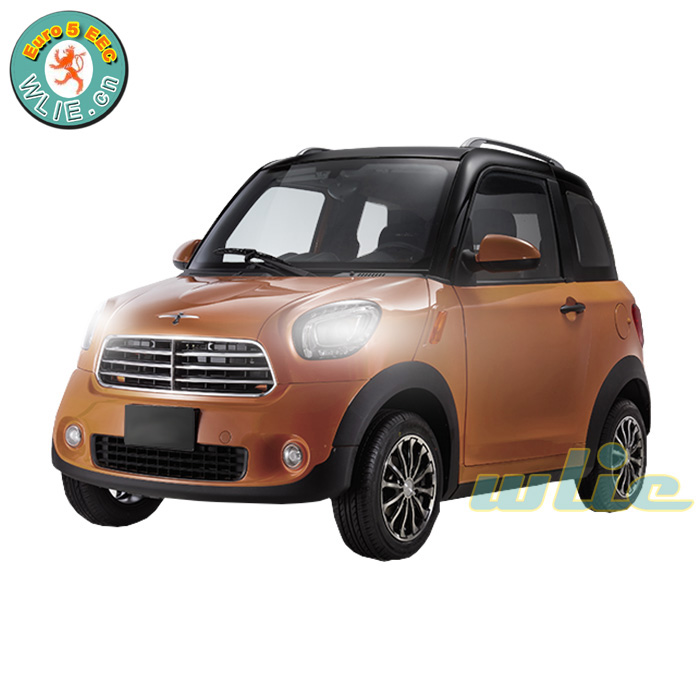

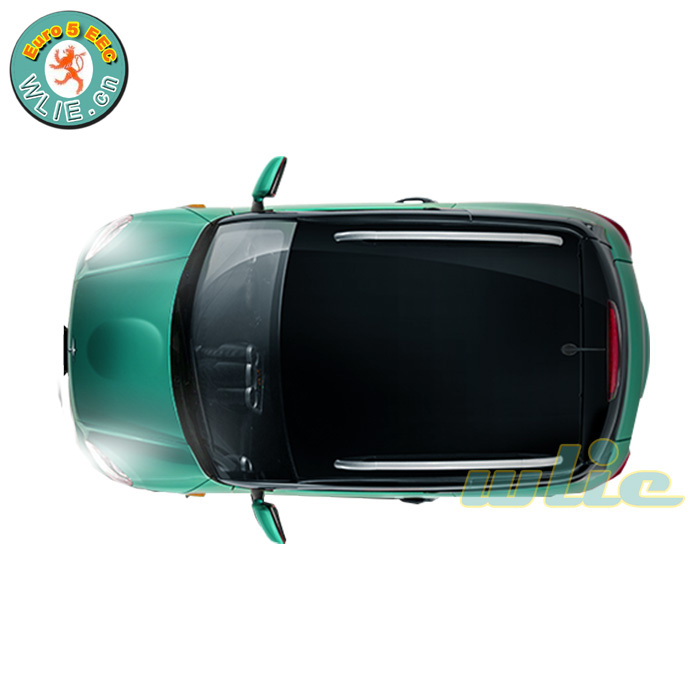

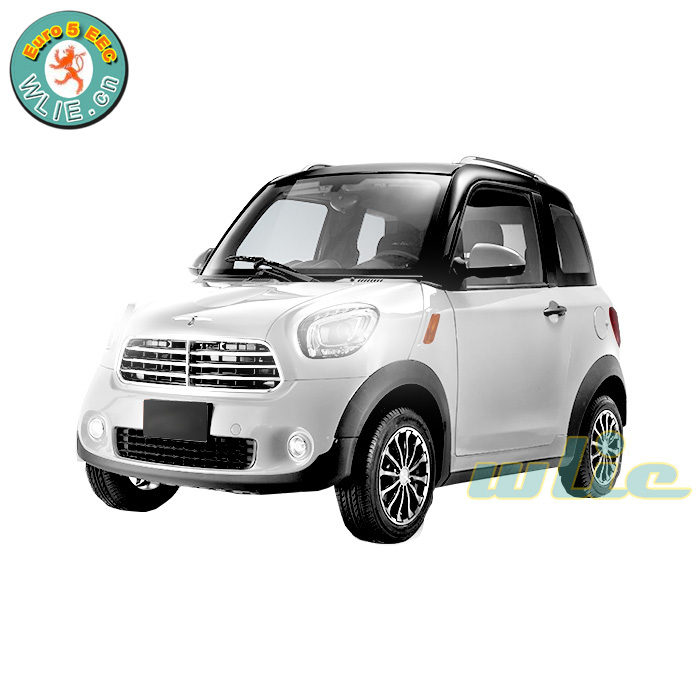

Color sample of the product


Details

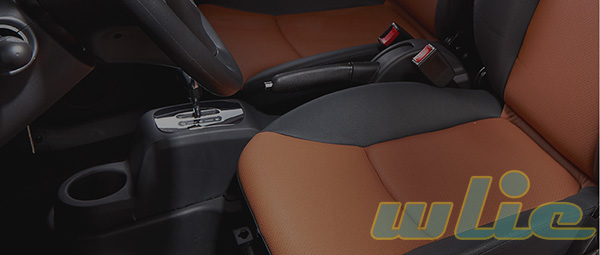

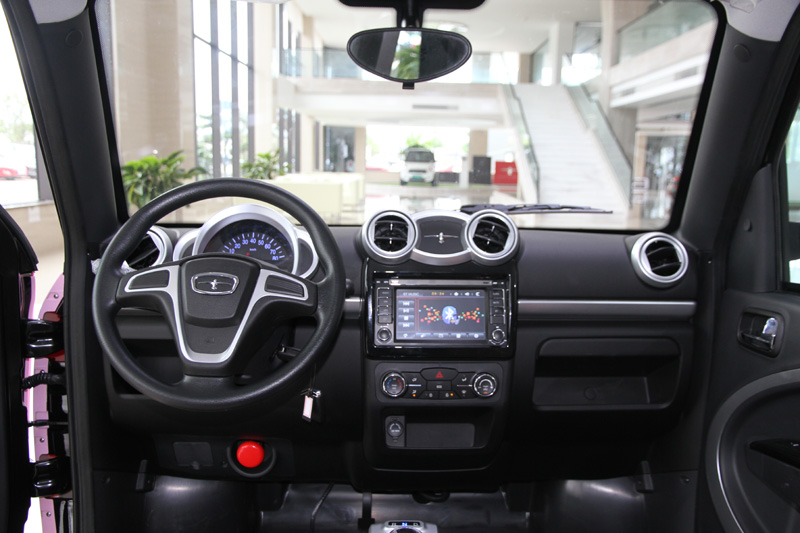

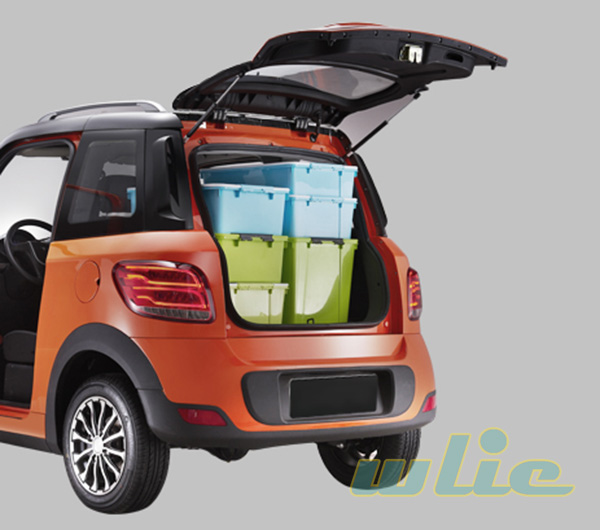

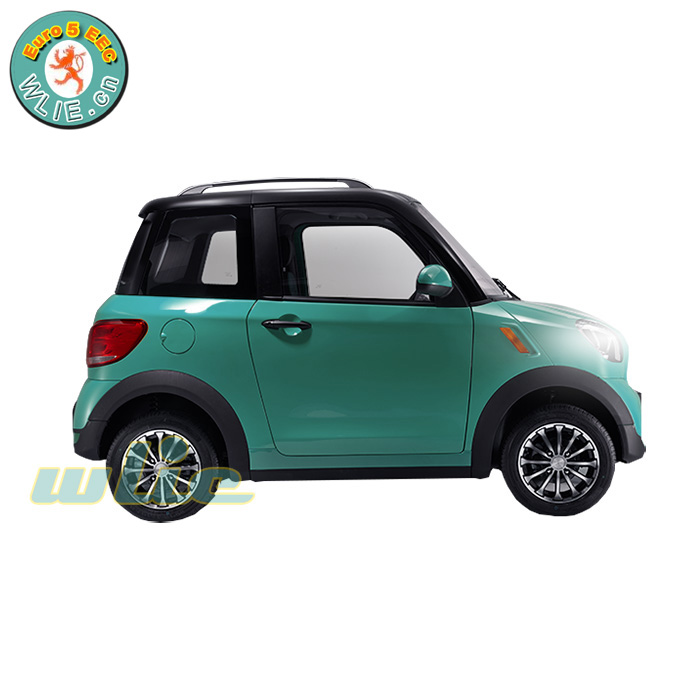

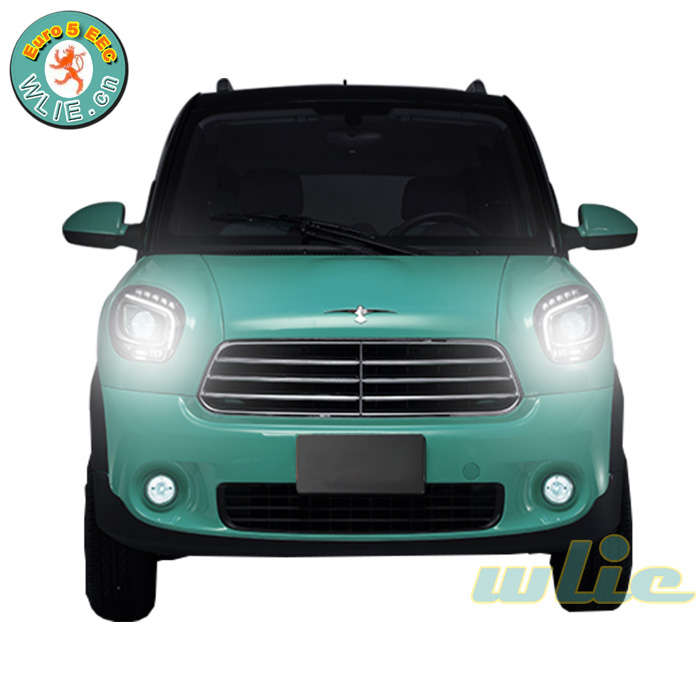

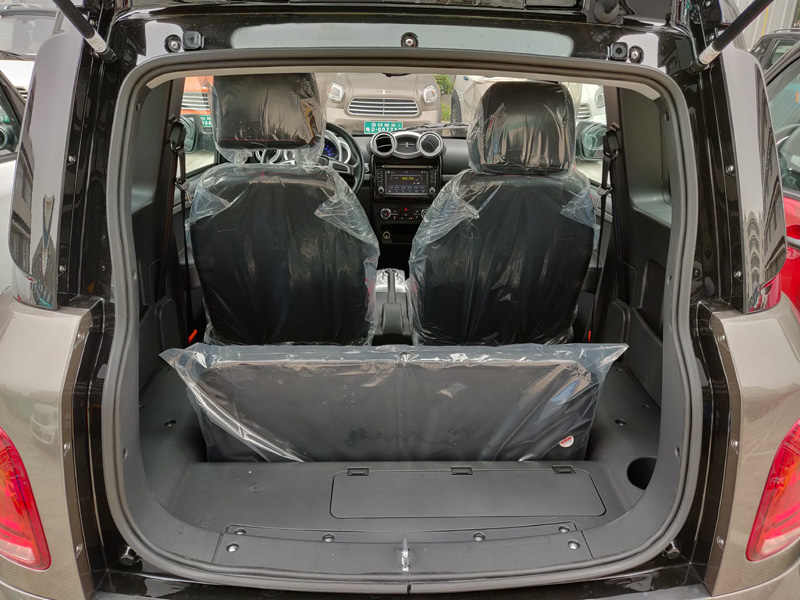

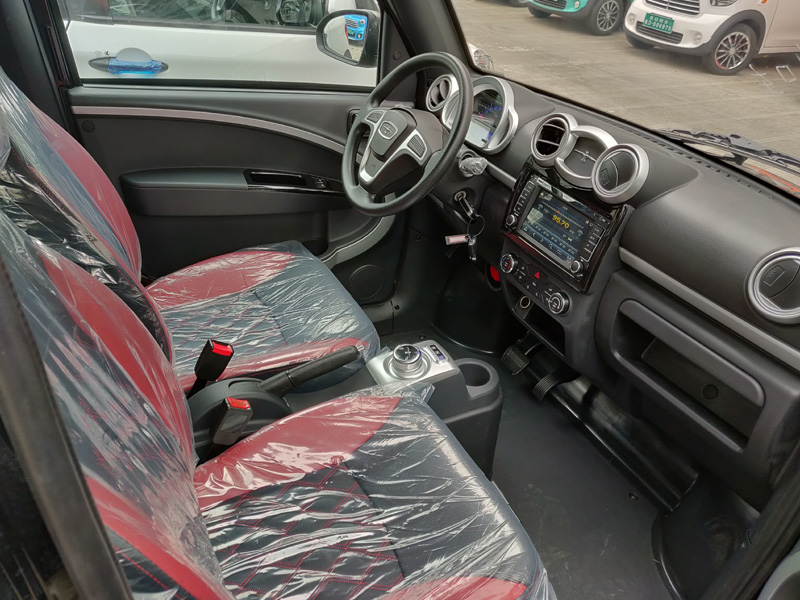

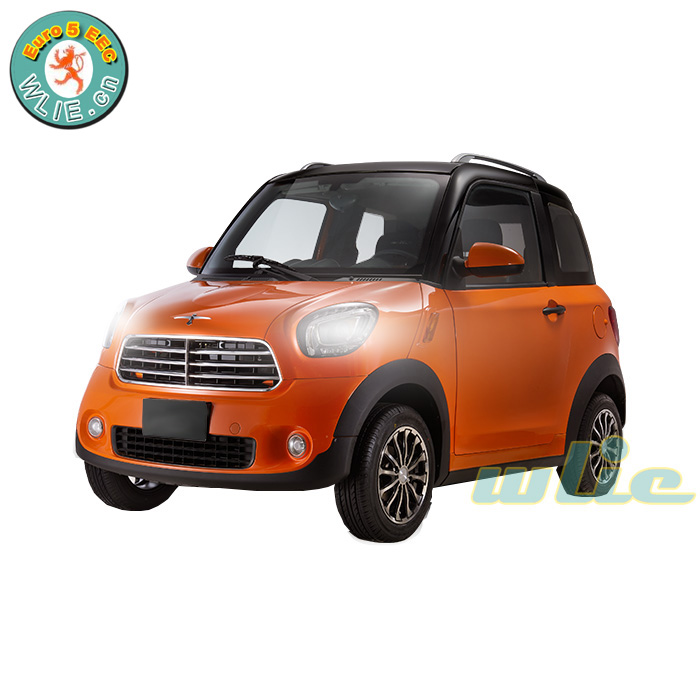

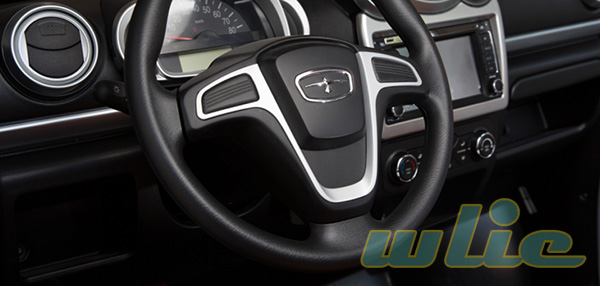

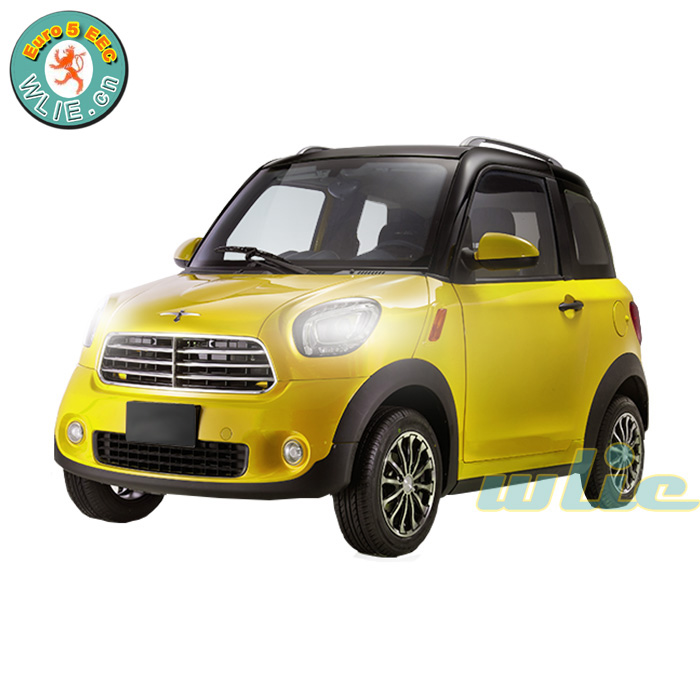

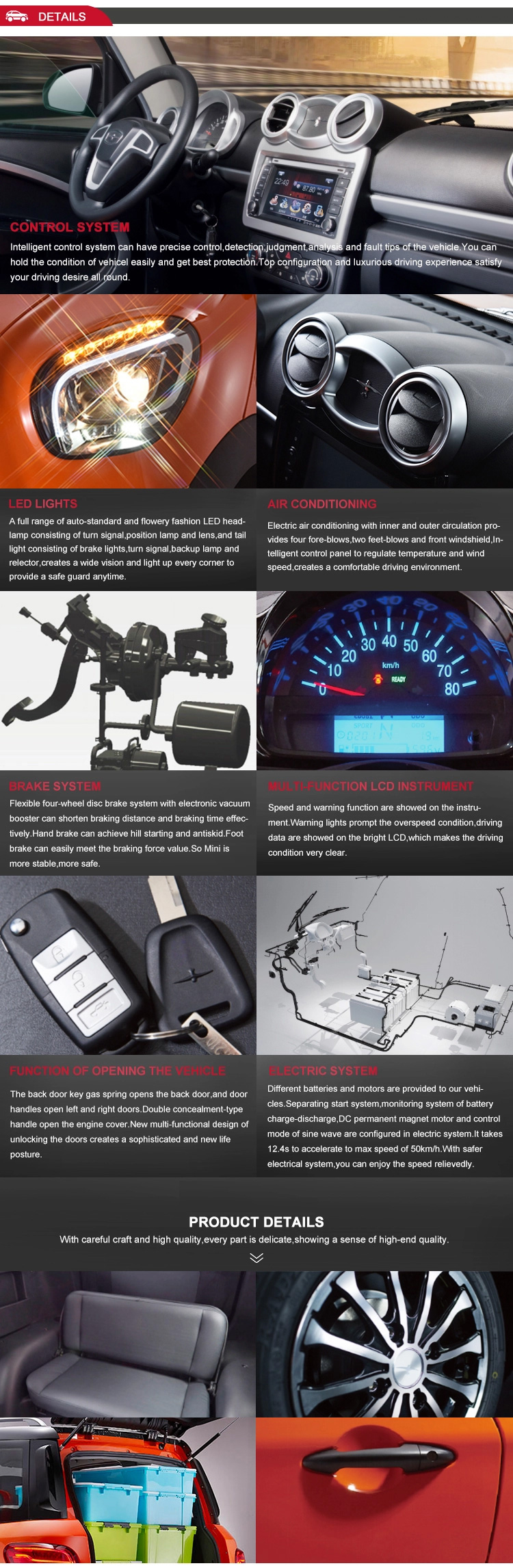

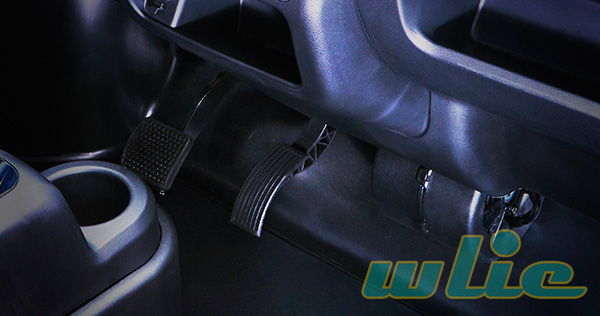

Detail photos of the model


Color



certificate
