PRODUCT
 |
| EATV-500M Inquiry |
specitification
| Item No | EATV-500M |
| Motor | 36V,500w brush motor |
| Battery | 36v,12Ah lead acid battery |
| Rated Speed(RPM) | 2500r/min |
| Rated Current | ≤18.3A |
| Rated torque | 1.7N.M |
| Drive | Chain drive |
| Suspension | Dual Spring Damper; Single Spring Damper |
| Brakes F/R | Dual Disc brake; Single Disc Brake |
| Tires F/R | F:4.10-4; R:4.10-4( 4 inch) |
| Seat Height | 47cm |
| Wheelbase | 69cm |
| Ground Clearance | 5cm |
| G.W/N.W | 43/39kgs |
| Max.Load | 50kgs |
| Max speed | 20km/h |
| Charging time | 6-8Hours |
| Brake distance | 20km/h ≤4m |
| L*W*H | 101*59*67cm |
| Packing size | 105*58*53cm |
| Container Load | 88pcs/20ft,220pcs/40HQ |
Selling Points of the product
1. Battery: 36V 12Ah Lead Acid
2.Motor: 36V 500W brush
3.Tire: 6 inch
4.Max Speed: 6km/h, 15km/h, 25km/h

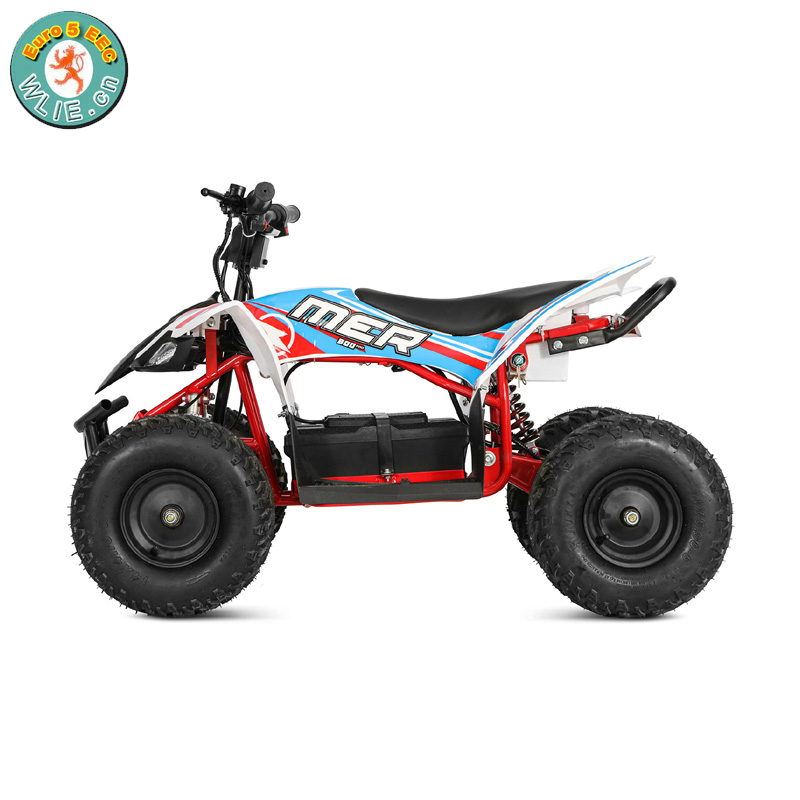

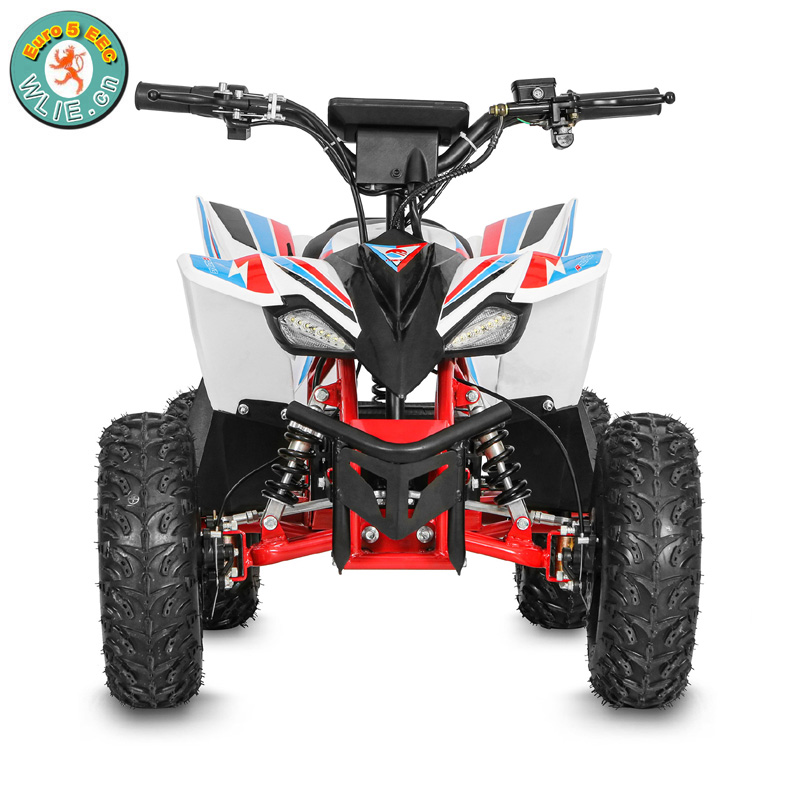

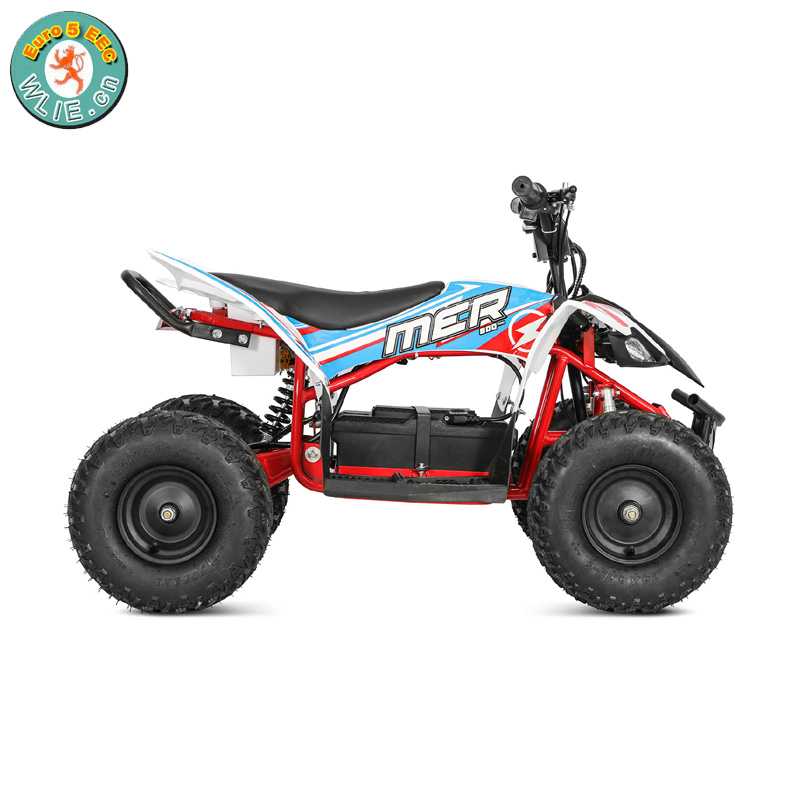

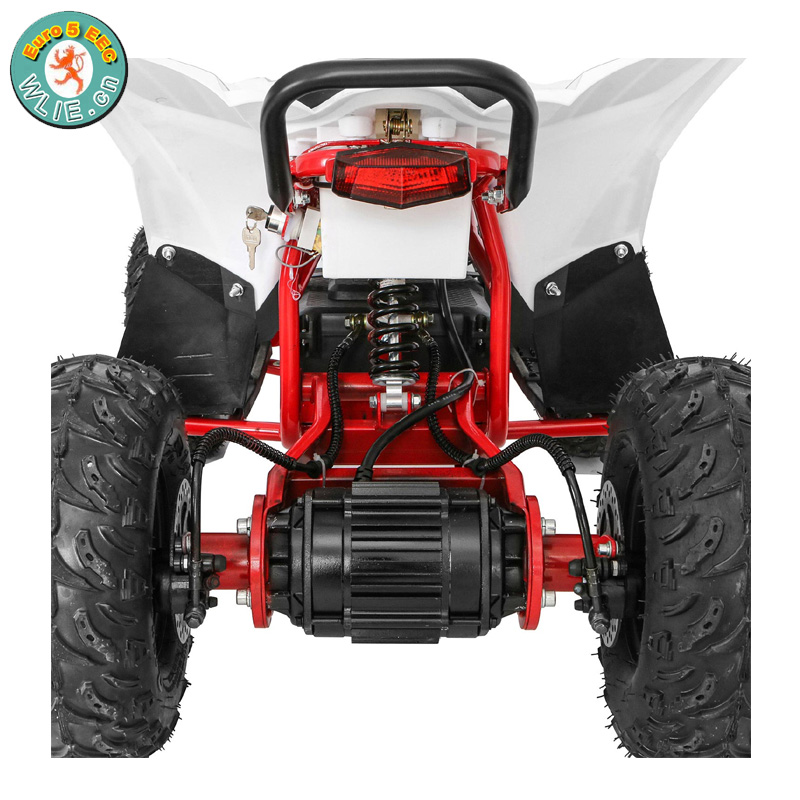

More pics of the product
|
 |
 |
 |
 |
