| EATV-500D Inquiry |
specitification
| Item No | EATV-500D |
| Motor | 36V,500w brush motor |
| Battery | 36v,12Ah lead acid battery |
| Rated Speed(RPM) | 2500r/min |
| Rated Current | ≤18.3A |
| Rated torque | 1.7N.M |
| Drive | Chain drive |
| Suspension | Dual Spring Damper;Single Spring Damper |
| Brakes F/R | Dual Disc brake; Single Disc Brake , |
| Tires F/R | F:4.10-4;R:4.10-4( 4 inch) |
| Seat Height | 47cm |
| Wheelbase | 69cm |
| Ground Clearance | 6cm |
| G.W/N.W | 44/40kgs |
| Max.Load | 50kgs |
| Max speed | 20km/h |
| Charging time | 6-8Hours |
| Brake distance | 20km/h ≤4m |
| L*W*H | 111*58*67cm |
| Packing size | 107*62*58cm |
| Container Load | 72pcs/20ft,152pcs/40HQ |
Selling Points of the product
Electric All Terrain Vehicle,
as we know it was powered by electric motor and battery,
it was with big size battery, 36V12Ah.
And the size of the wheel is bigger than the normal 500W ATV.

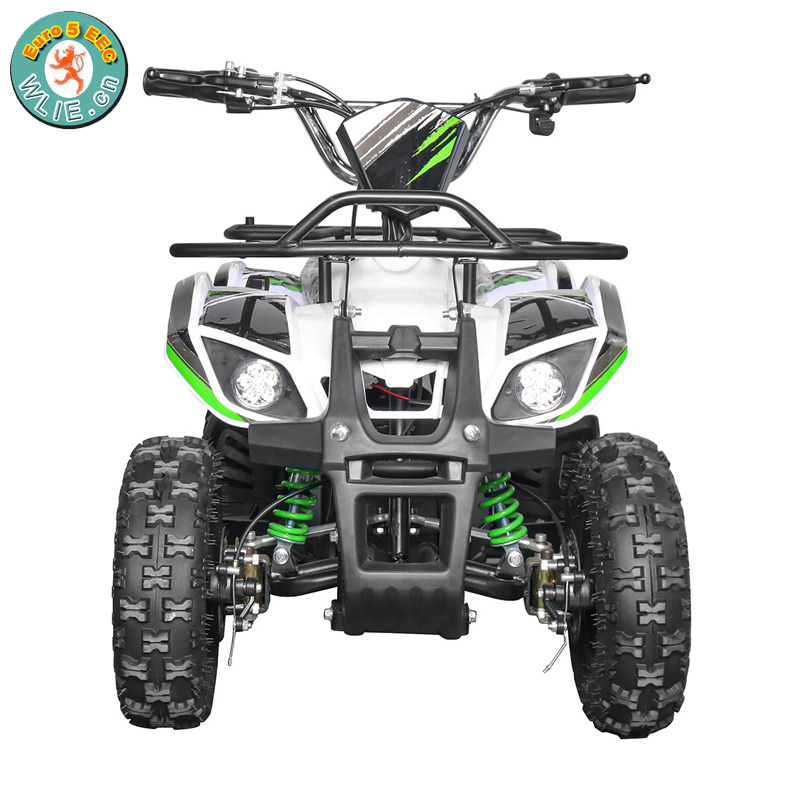

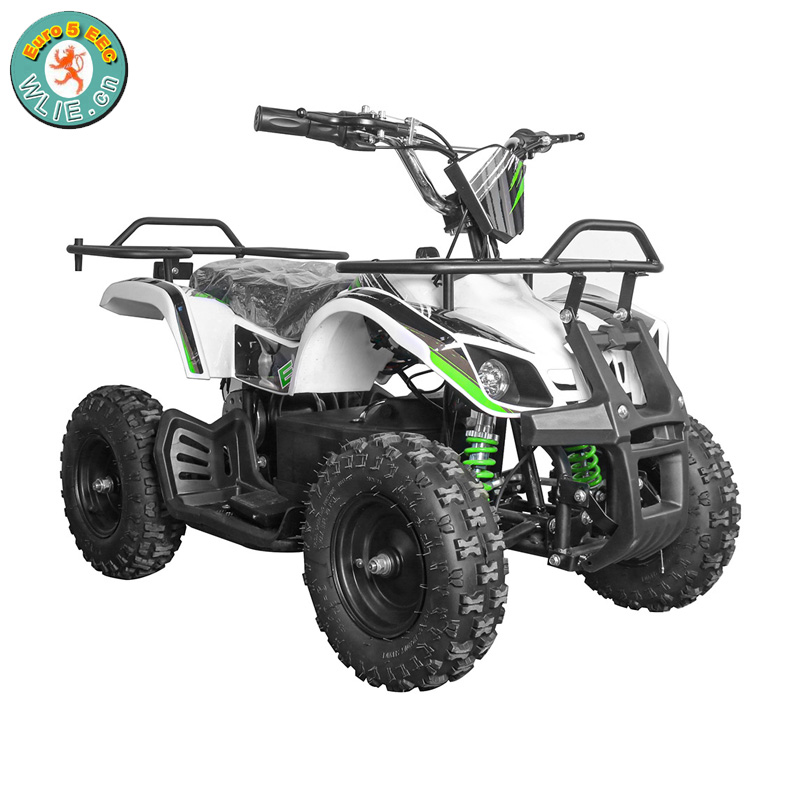

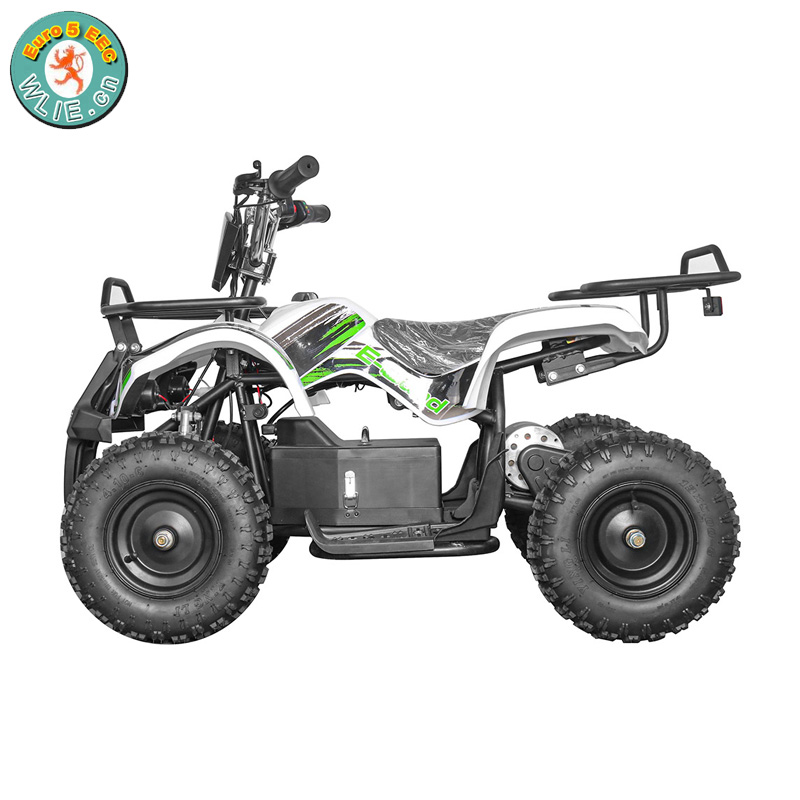

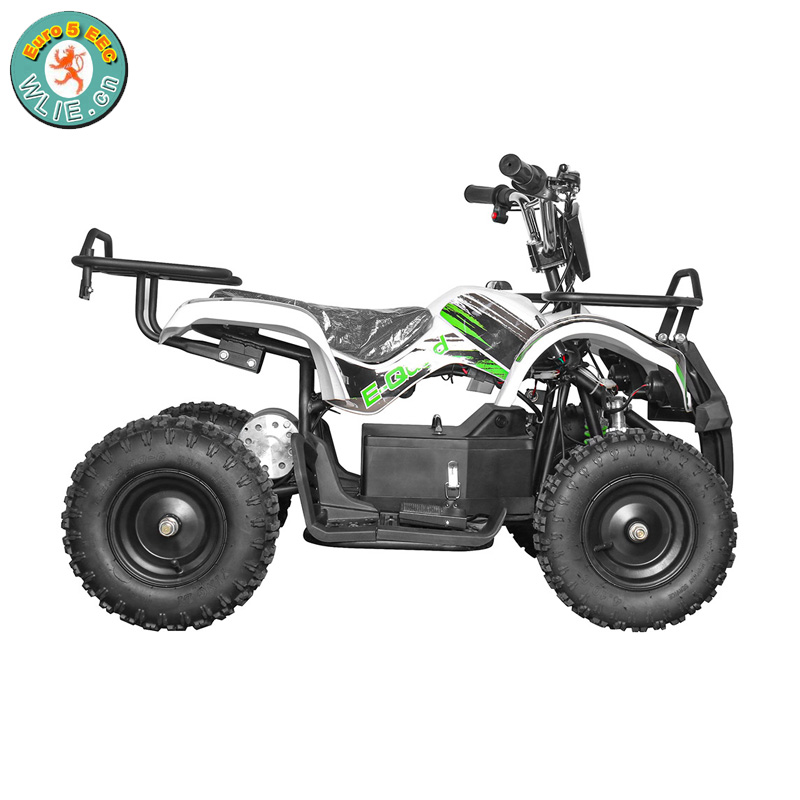

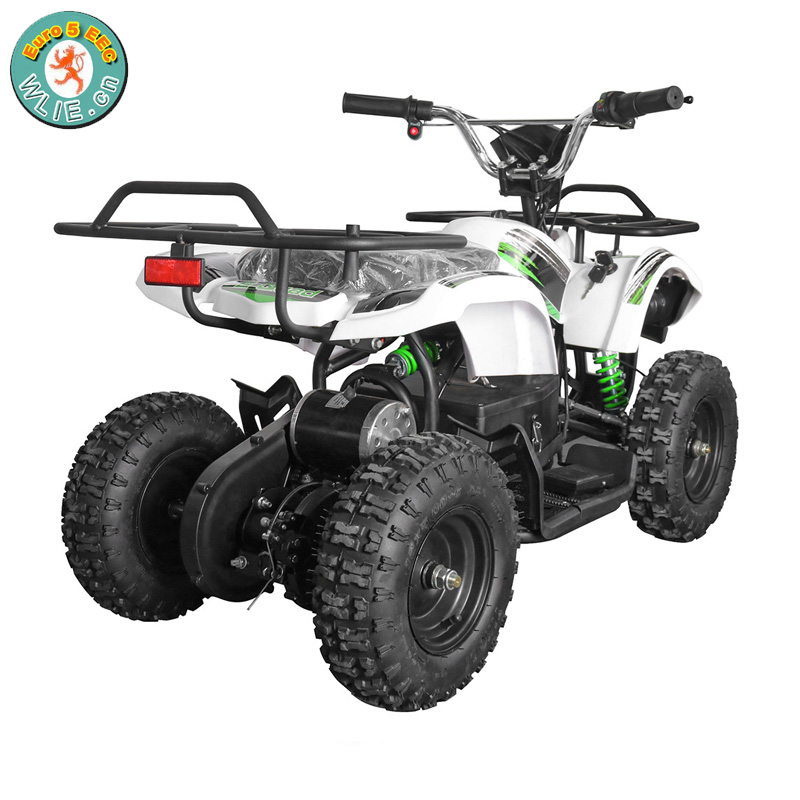

More pics of the product
|
 |
 |
 |
 |
 |
Certificate
