PRODUCT
 |
| ATV-049B-Y Inquiry |
specitification
Item No | ATV-049B-Y |
| Engine | 49cc two stroke, single -cylinder, Air cooled |
| Bore & Stroke | 44*33mm |
| Starting | Pull start |
| Drive | Chian Drive |
| Transmission | Automatic, Single Forward |
| Suspension | Dual shock absorber.Single shock absorber |
| Brake | Dual Disc brake,Singlle Disc Brake |
| Tyre | 4.10-4;4.10-4 (4 inch) |
| Fuel Tank | 0.9 L Plastic Tank |
| Seat Heigh | 47cm |
| Wheelbase | 68cm |
| Ground Clearance | 5cm |
| Max. Loading | 50kgs |
| Max. Speed | 25km/h |
| Product Size | 101*62*63 cm |
| Packing Size | 105*58*53 cm |
| G.W./N.W. | 34/29.6 Kgs |
| Brake Distance | ≤ 5m at 20 Km/h |
| Container Loading | 88 Pieces/20"FT; 230 Pieces/40"HQ |
Selling Points of the product
The 49cc two stroke ATV,
it’s 49cc two stroke, single cylinder, air-cooled.
The 49cc ATV drive is chain with chain tension and protector.

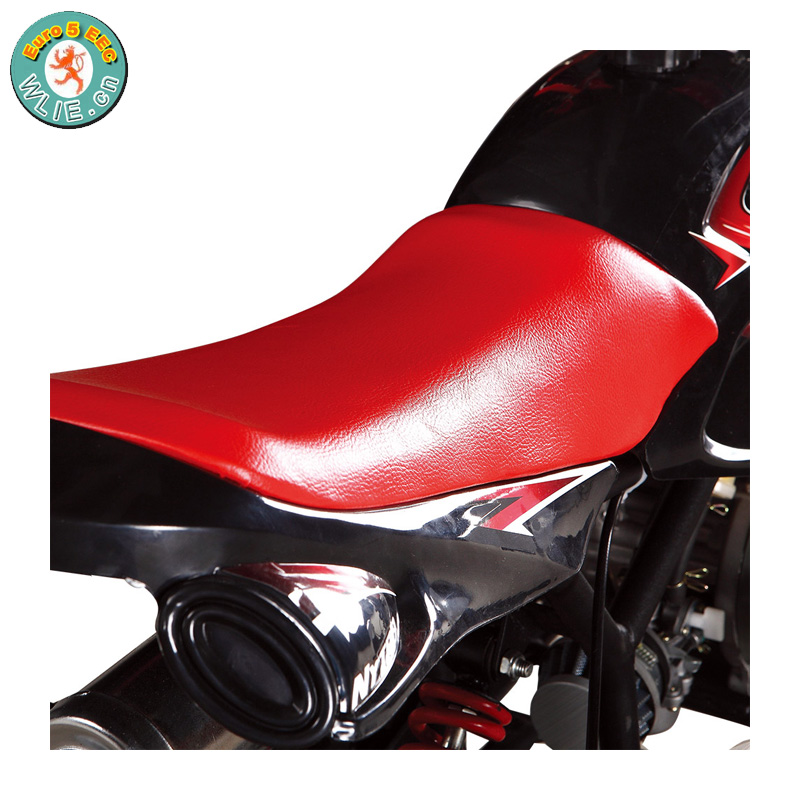

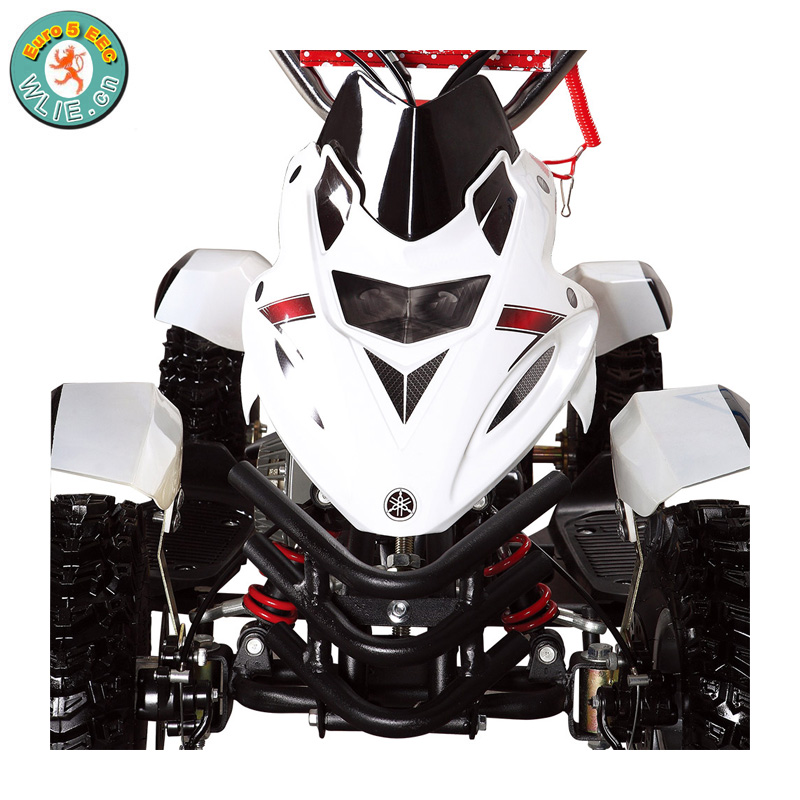

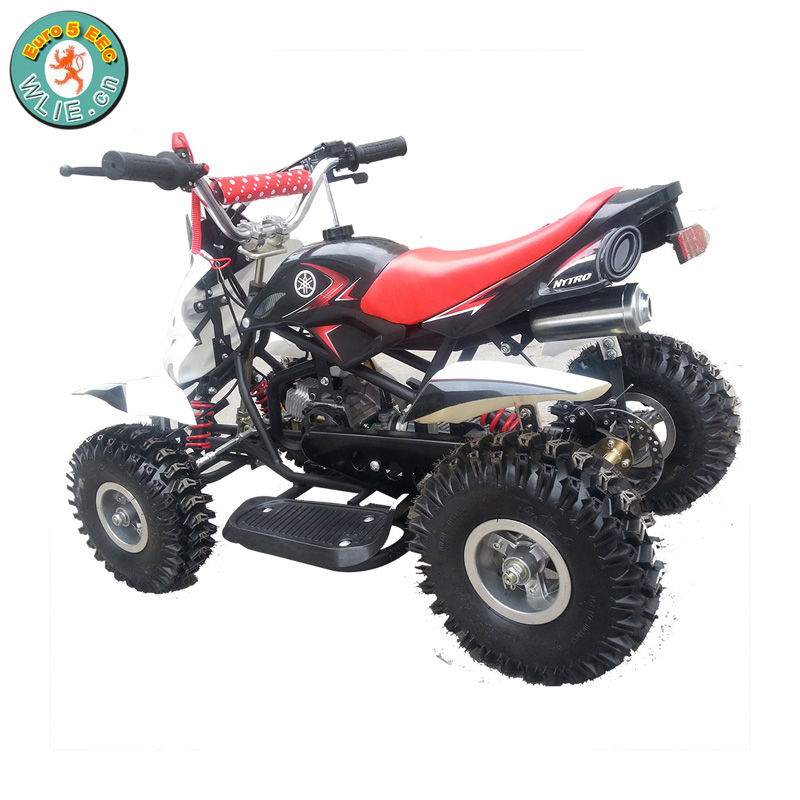

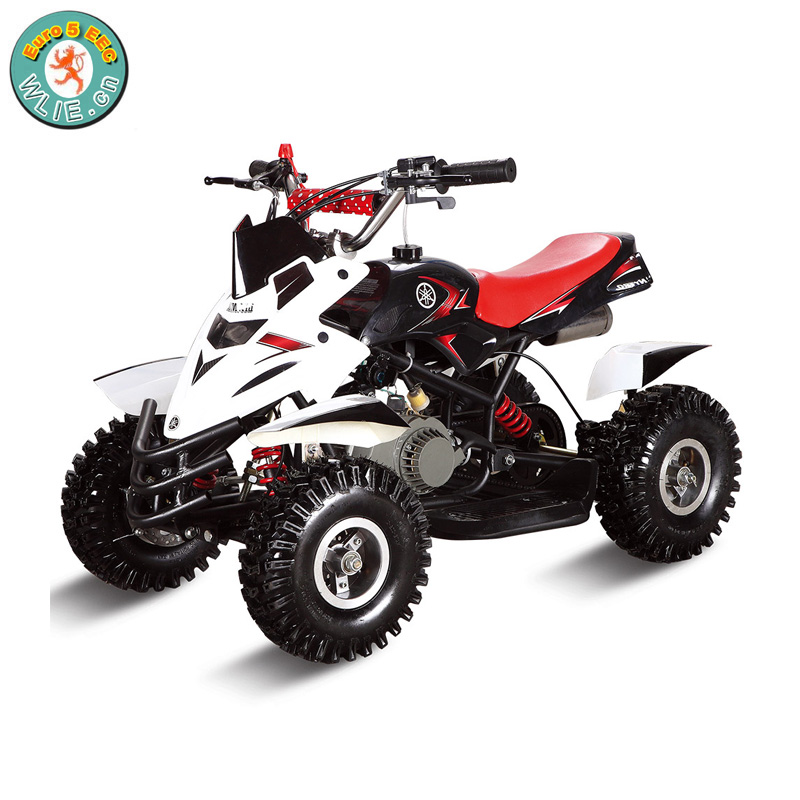

More pics of the product
|
 |
 |
 |
 |
 |
