PRODUCT
 |
| ATV-049M Inquiry |
specitification
Item No | ATV-049M |
| Engine | 49cc two strok, single -cylinder, Air cooled |
| Bore & Stroke | 44*33mm |
| Starting | Pull start |
| Drive | Chian Drive |
| Transmission | Automatic, Single Forward |

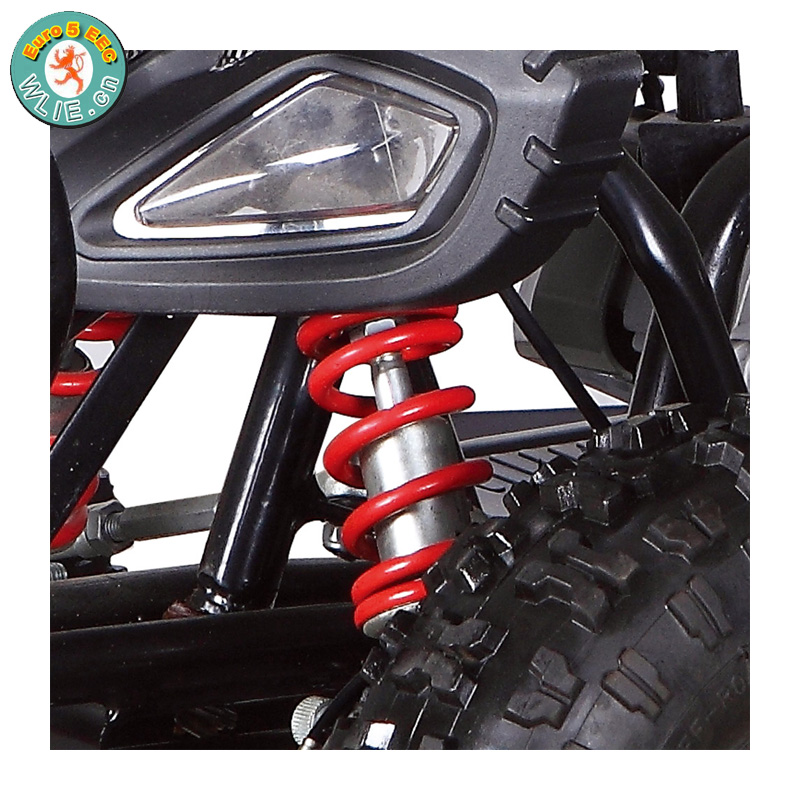

| Suspension | Dual shock absorber. Single shock absorber |

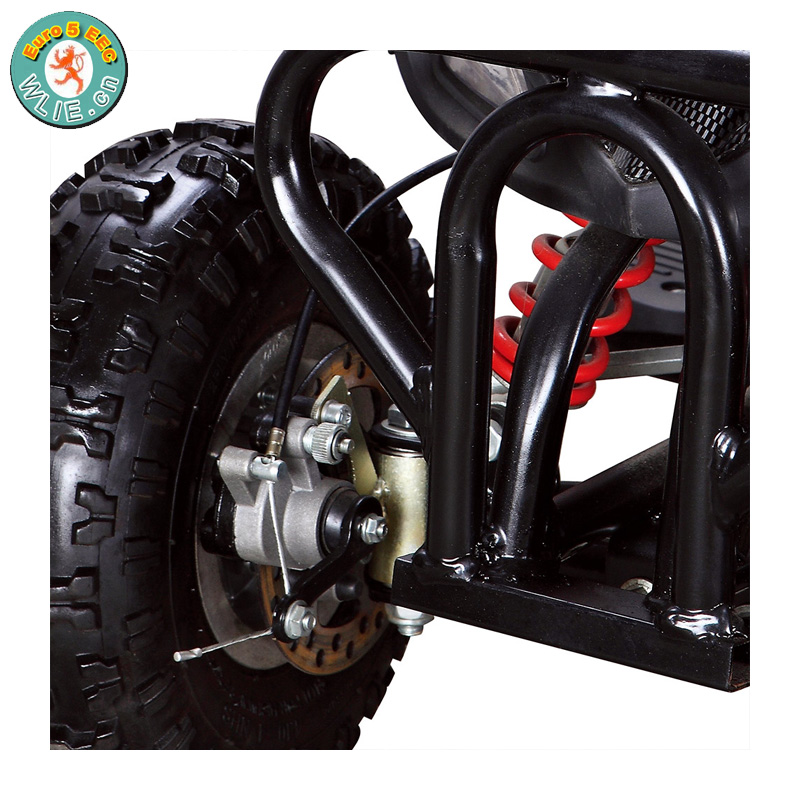

| Brake | Dual Disc brake, Single Disc Brake |
| Tyre | 4.10-4;4.10-4 (4 inch) |
| Fuel Tank | 0.9 L Plastic Tank |
| Seat Height | 49cm |
| Wheelbase | 69cm |
| Ground Clearance | 8.5cm |
| Max. Loading | 50kgs |
| Max. Speed | 25km/h |
| Product Size | 100*69*72cm |
| Packing Size | 101*58*53cm |
| G.W./N.W. | 36/32kgs |
| Brake Distance | ≤ 5m at 20 Km/h |
| Container Loading | 88 Pieces/20”FT, 230 Pieces/40”HQ |
Selling Points of the product
The 49cc two stroke ATV,

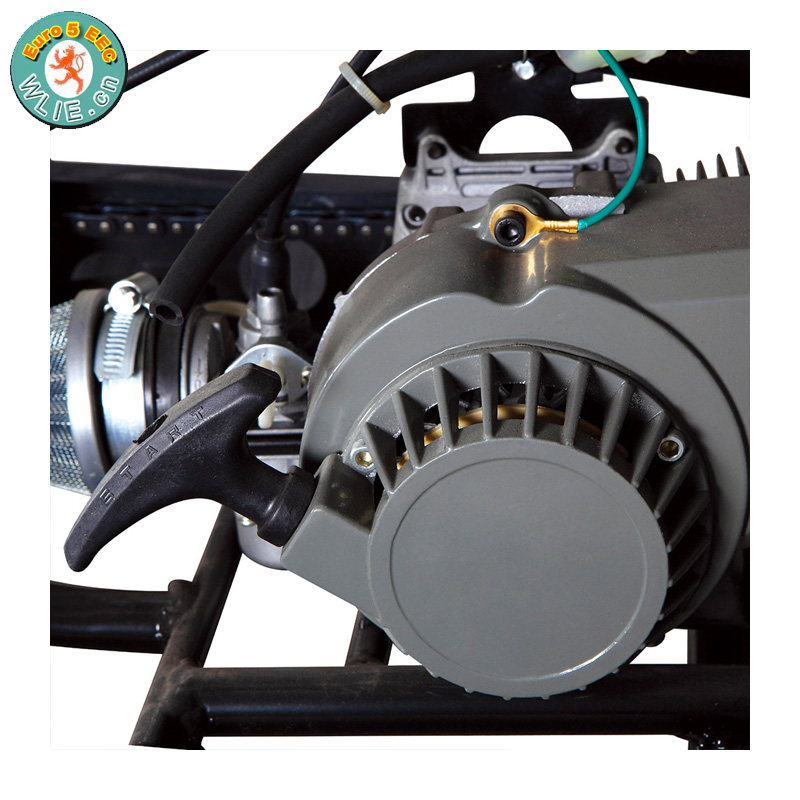

it’s 49cc two stroke, single cylinder, air-cooled.
The 49cc ATV drive is chain with chain tension and protector.
