| ATV-049HM Inquiry |
specitification
| Item No | ATV-049HM |
| Engine | 49cc two stroke, single -cylinder, Air cooled |
| Bore & Stroke | 44*33mm |
| Starting | Pull start |
| Drive | Chian Drive |
| Transmission | Automatic, Single Forward |

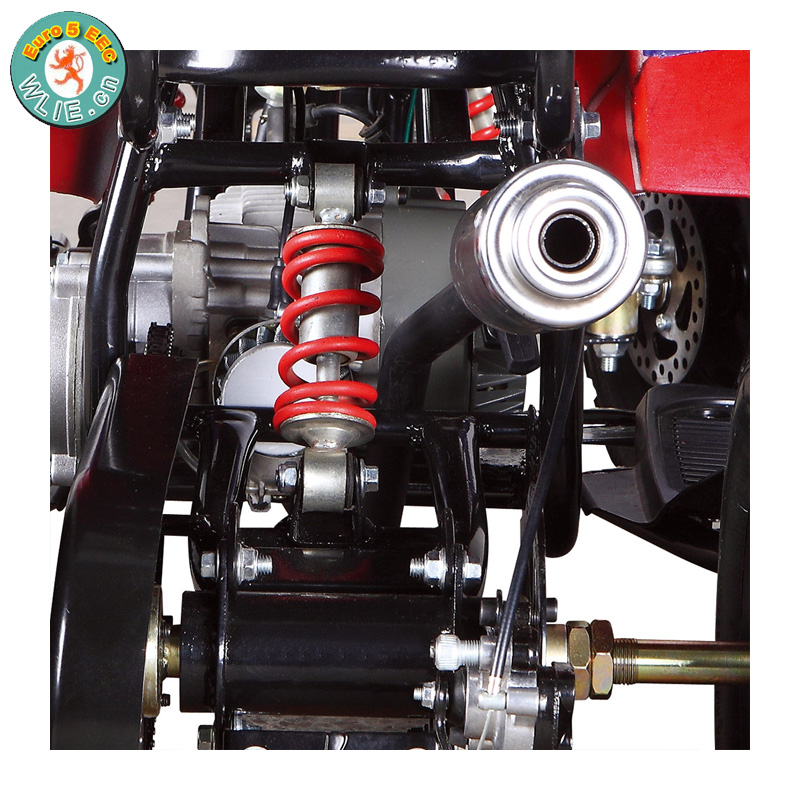

| Suspension | Dual shock absorber.Single shock absorber |
| Brake | Dual Disc brake, Single Disc Brake |
| Tyre | 4.10-4;4.10-4 (4 inch) |
| Fuel Tank | 0.9 L Plastic Tank |
| Seat Height | 51cm |
| Wheelbase | 70cm |
| Ground Clearance | 8.5cm |
| Max. Loading | 50kgs |
| Max. Speed | 25km/h |
| Product Size | 113*60*71 cm |
| Packing Size | 107*62*58 cm |
| G.W./N.W. | 44/39kgs |
| Brake Distance | ≤ 5m at 20 Km/h |
| Container Loading | 72 Pieces/20”FT, 152 Pieces/40”HQ |
Selling Points of the product

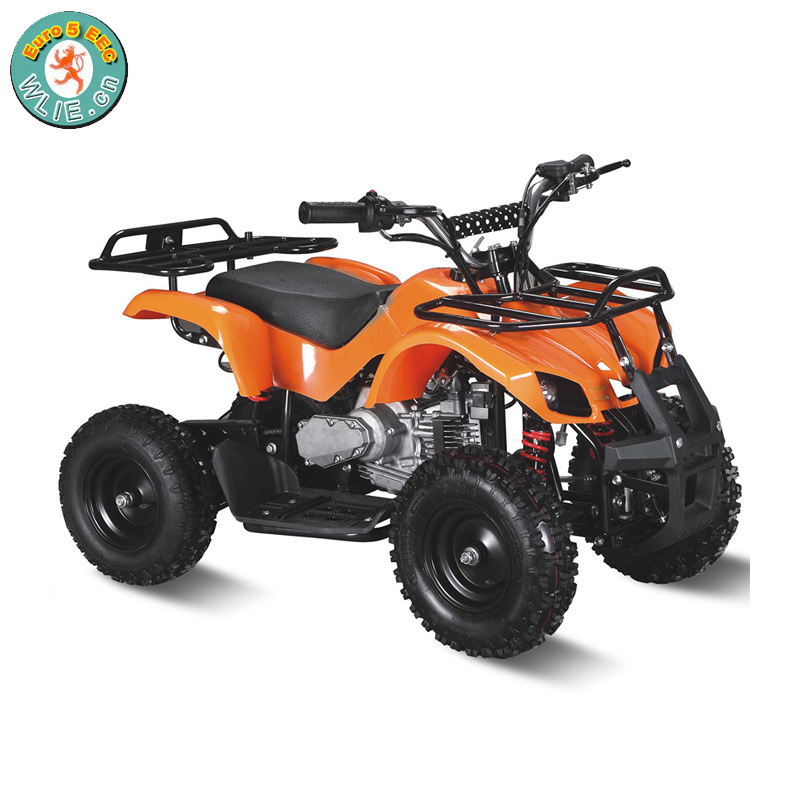

The 49cc two stroke ATV,
it’s 49cc two stroke, single cylinder, air-cooled.
The starting way is Pull start.
The 49cc ATV drive is chain with chain tension and protector.
